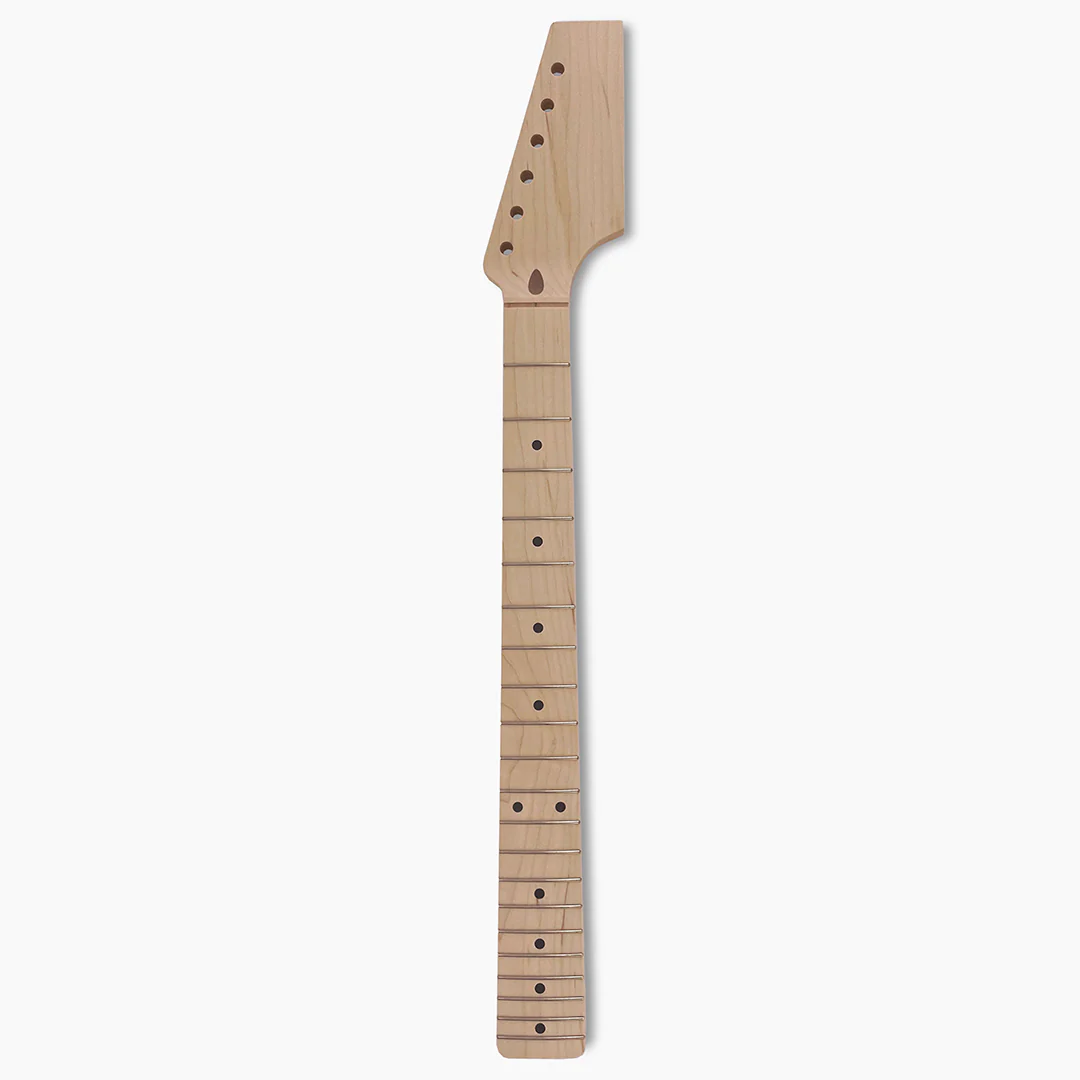

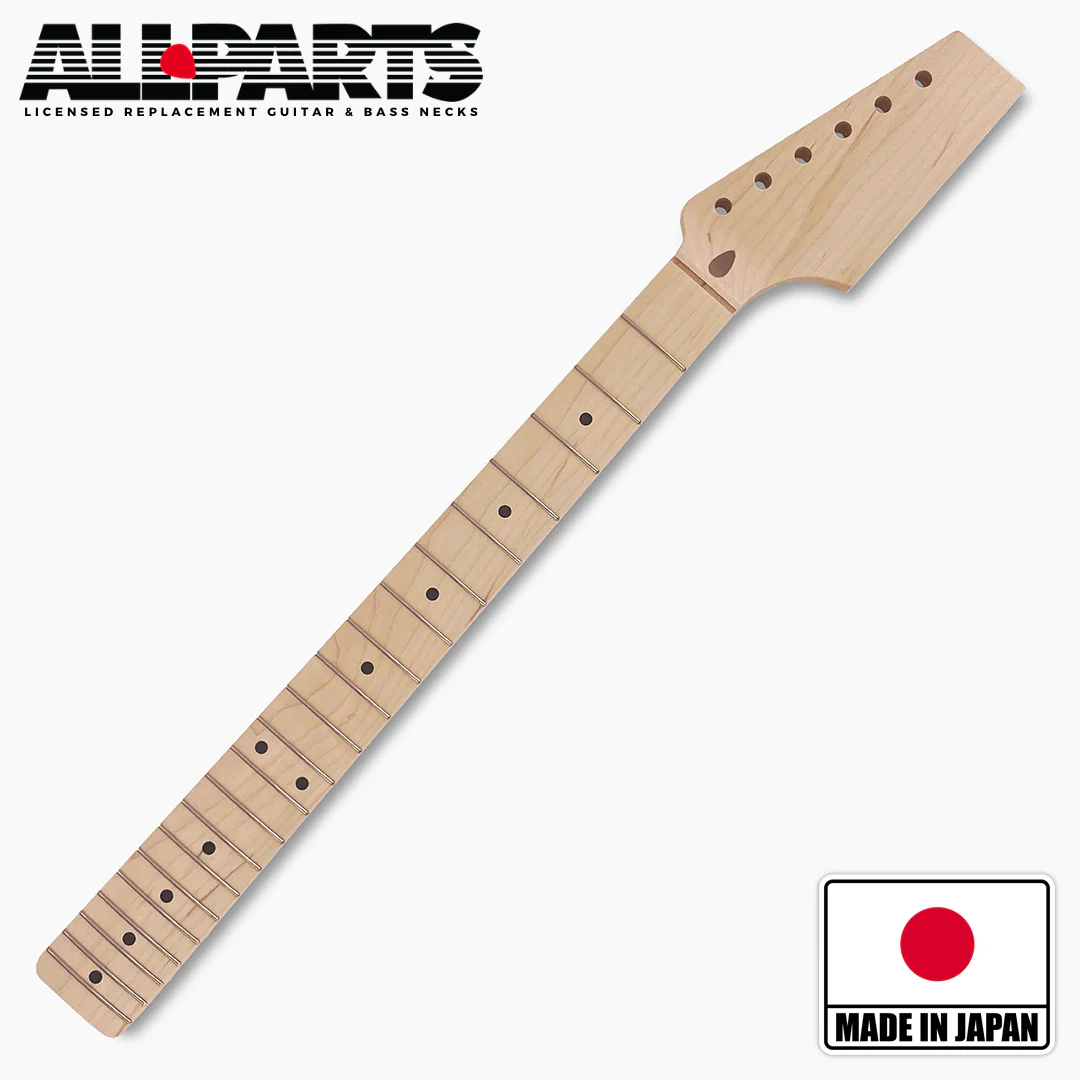

Based on our most popular neck, our PHM-T1C neck offers all the same benefits as our TMO-C Telecaster® replacement neck in "paddle-head" version.  Cut for a "squared" neck pocket, the PHM-T1C offers a comfortable C-shape profile, 21 vintage tall frets, and 10" fretboard radius neck that will drop into most squared/ flat Telecaster® neck pockets.  Predrilled for vintage 6 in-line tuners, the PHM-T1C takes out the guess work of where to install your keys! A great neck for those looking to customize their guitar with a personalized look!

Specifications

• Scale Length: 25.5"
• Neck Profile Shape: C
• Frets: 21 Tall frets (0.079" x 0.055")
• Wood: 1-piece maple
• Finish: None/Unfinished
• Fretboard Radius:  10"
• Inlays: Black fretboard and side marker dots
• Nut Width: 1-5/8"
• Heel Width: 2-3/16"

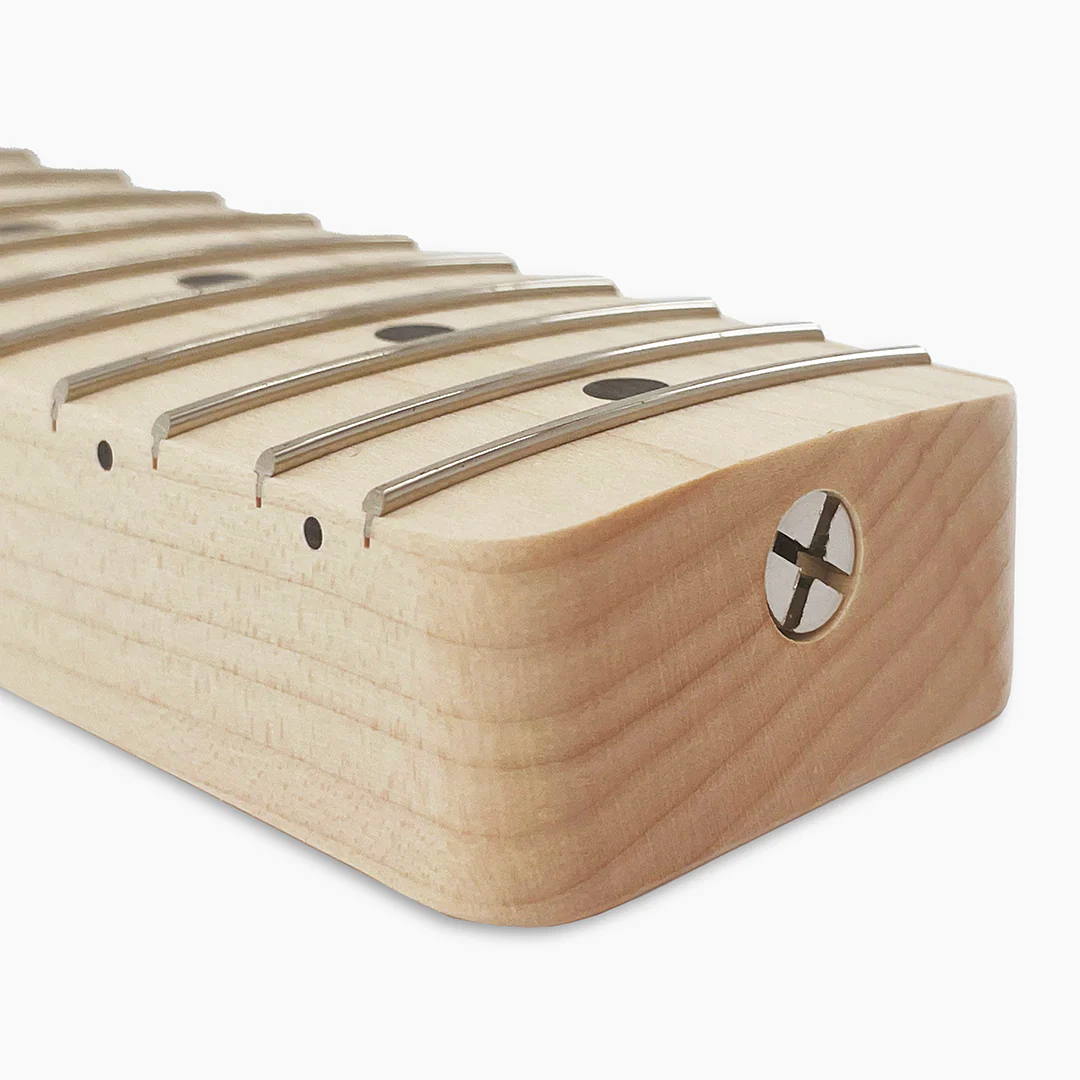

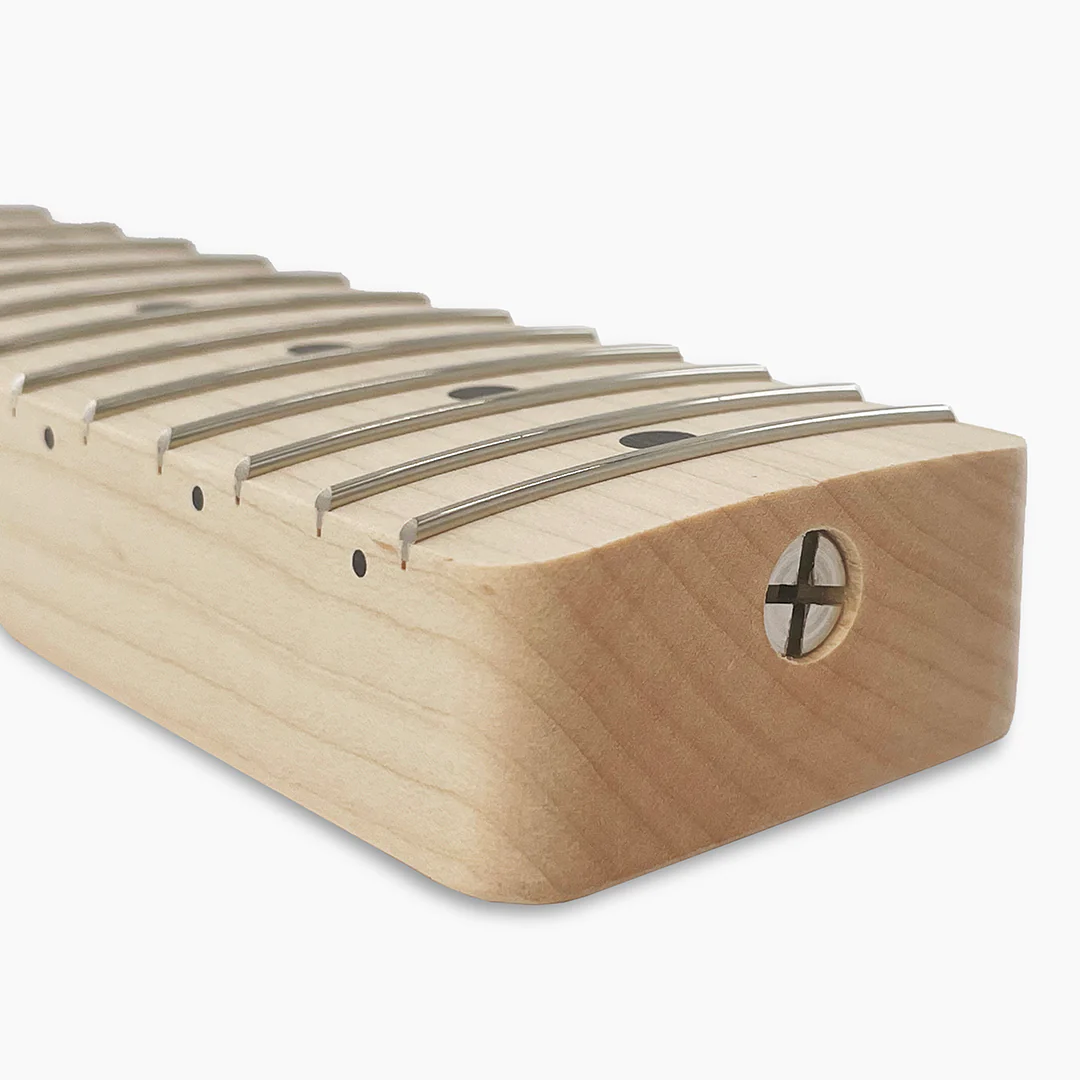

• Heel Profile: squared
• Tuning Peg Holes: Vintage 2-step hole
• 0.34" (8.5mm) bushing-hole diameter
• 0.25" (6.5mm) post-hole diameter

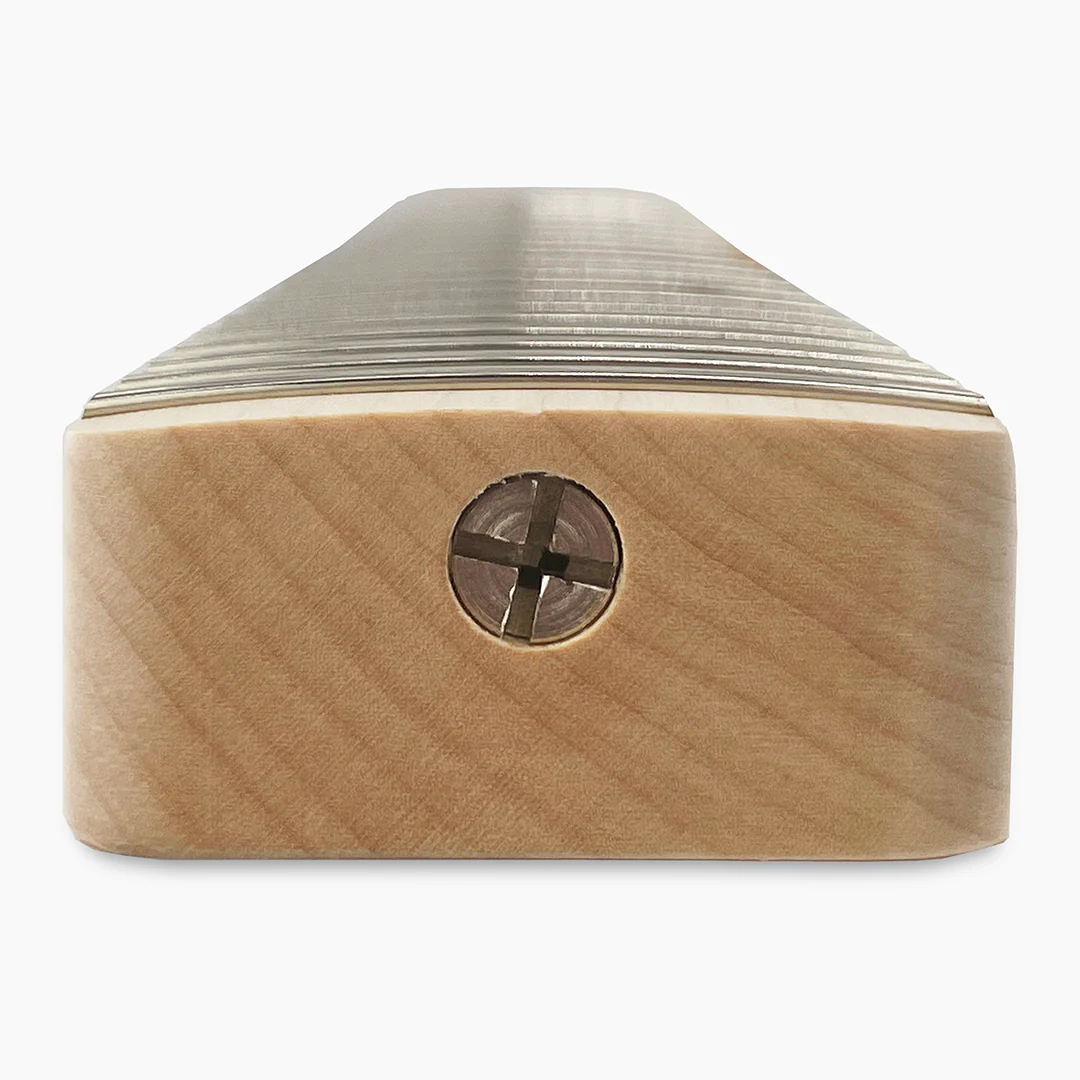

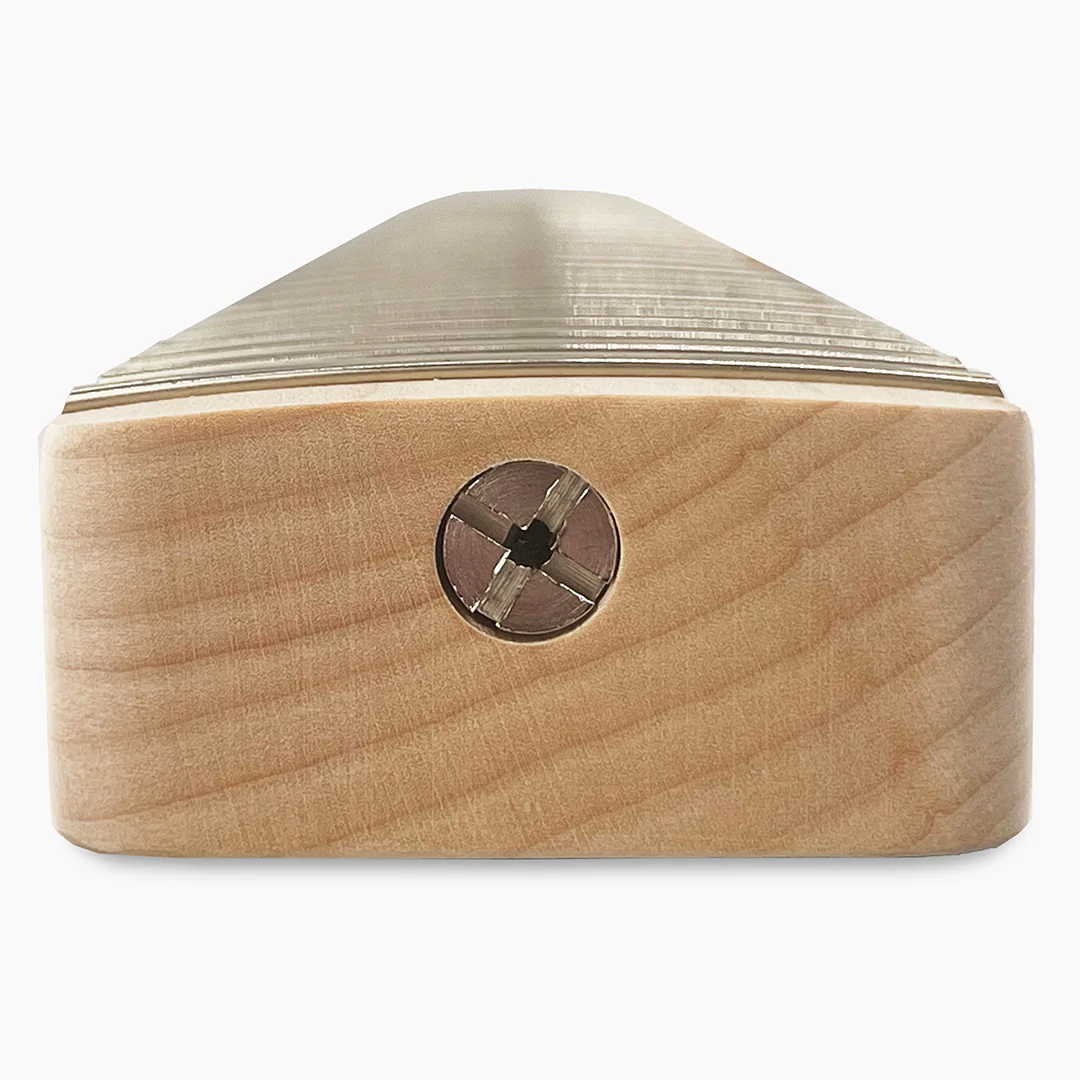

• Truss Rod Adjustment Location: Heel
• Neck Thickness:
• 0.85" at first fret
• 0.95" at twelfth fret

Important Notes

• Wood grain varies from neck to neck.  Your neck may differ slightly from what is pictured.
• All necks have a limited lifetime warranty against defects in materials and workmanship.
• All necks may require fret leveling and polish.  This is normal and not a defect.
• To protect against the effects of moisture, we recommend sealing unfinished necks prior to installation.
