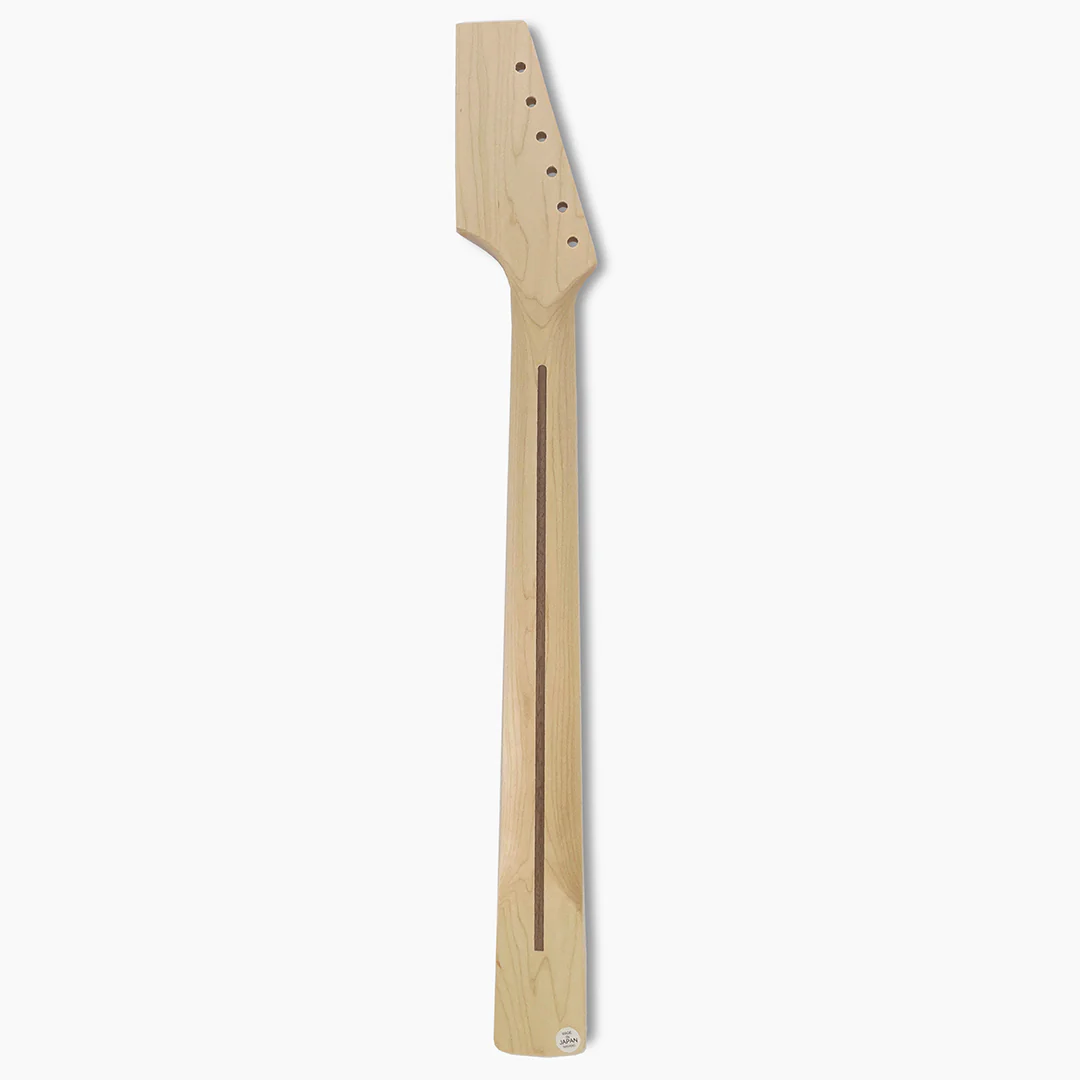

Our PHM-1 offers a flatter 12" radius fretboard, 22 jumbo frets, and comfortable C-shape profile for faster, more precise playing.   Pre-drilled for vintage 6 in-line tuners, this paddle head neck takes the guess work out of where to place your tuning keys!  Matched with a rounded "S-style" heel profile, the PHM-1 is made to to retrofit onto your favorite Stratocaster® body!

Specifications

• Scale Length: 25.5"
• Neck Profile Shape: C
• Frets: 22 Jumbo frets (0.114" x 0.055")
• Wood: 1-piece maple
• Finish: None/Unfinished
• Fretboard Radius:  12"
• Inlays: Black fretboard and side marker dots
• Nut Width: 1-5/8"
• Heel Width: 2-3/16"

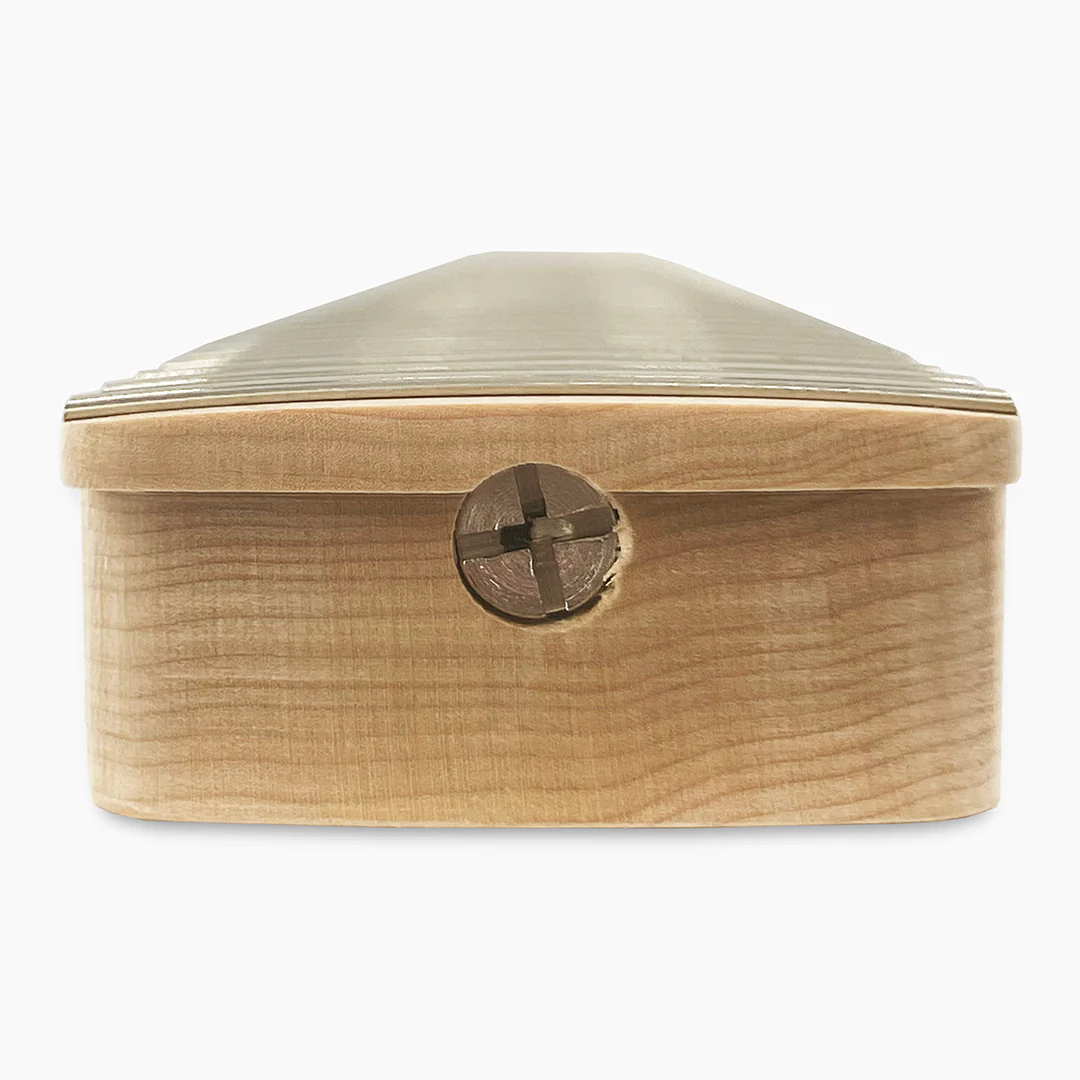

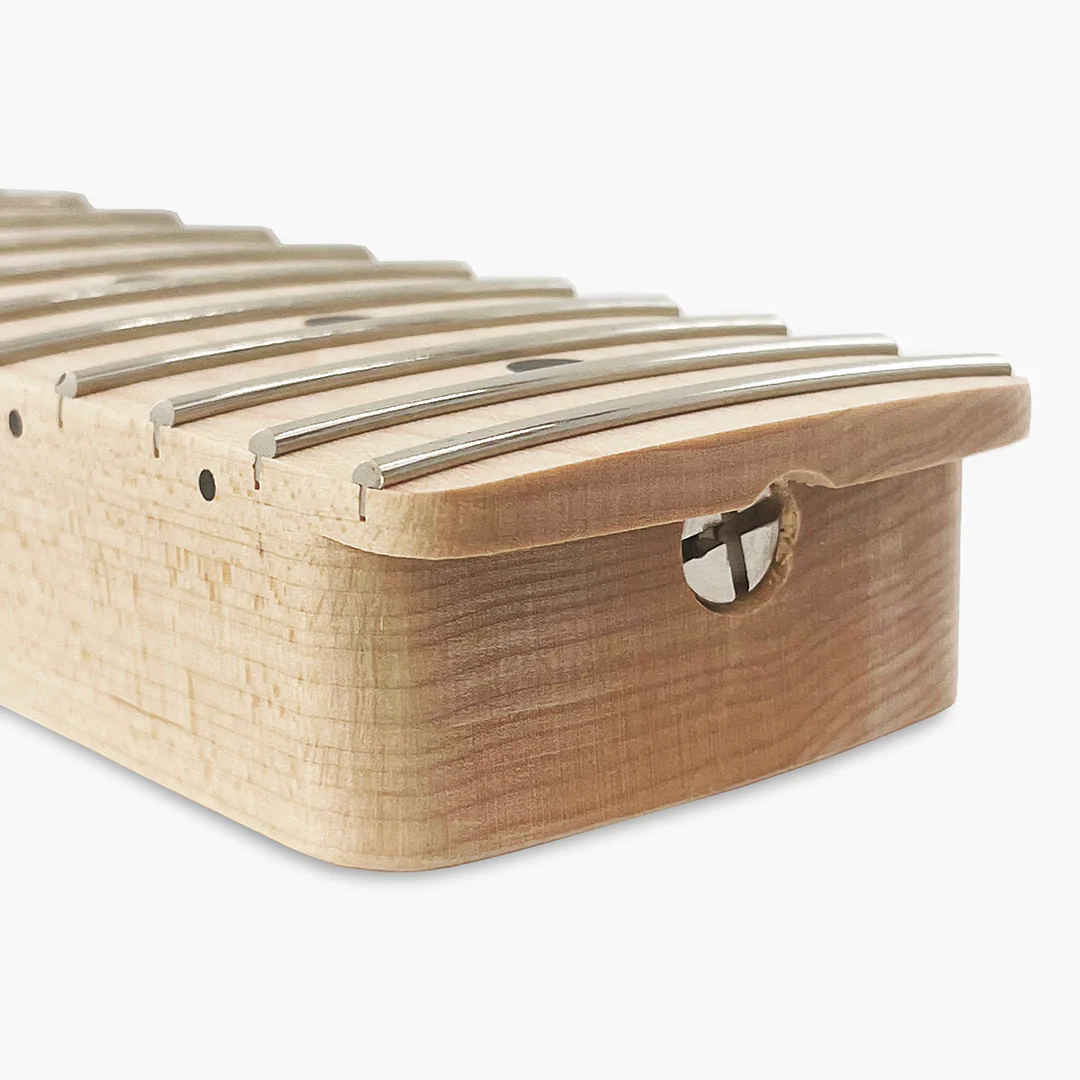

• Heel Profile: Round
• Tuning Peg Holes: Vintage 2-step hole
• 0.34" (8.5mm) bushing-hole diameter
• 0.25" (6.5mm) post-hole diameter
• Truss Rod Adjustment Location: Heel
• Neck Thickness:
• 0.85" at first fret
• 0.95" at twelfth fret

Important Notes

• Wood grain varies from neck to neck.  Your neck may differ slightly from what is pictured.
• All necks have a limited lifetime warranty against defects in materials and workmanship.
• All necks may require fret leveling and polish.  This is normal and not a defect.
• To protect against the effects of moisture, we recommend sealing unfinished necks prior to installation.
