Allparts Wiring Kit for Jazzmaster

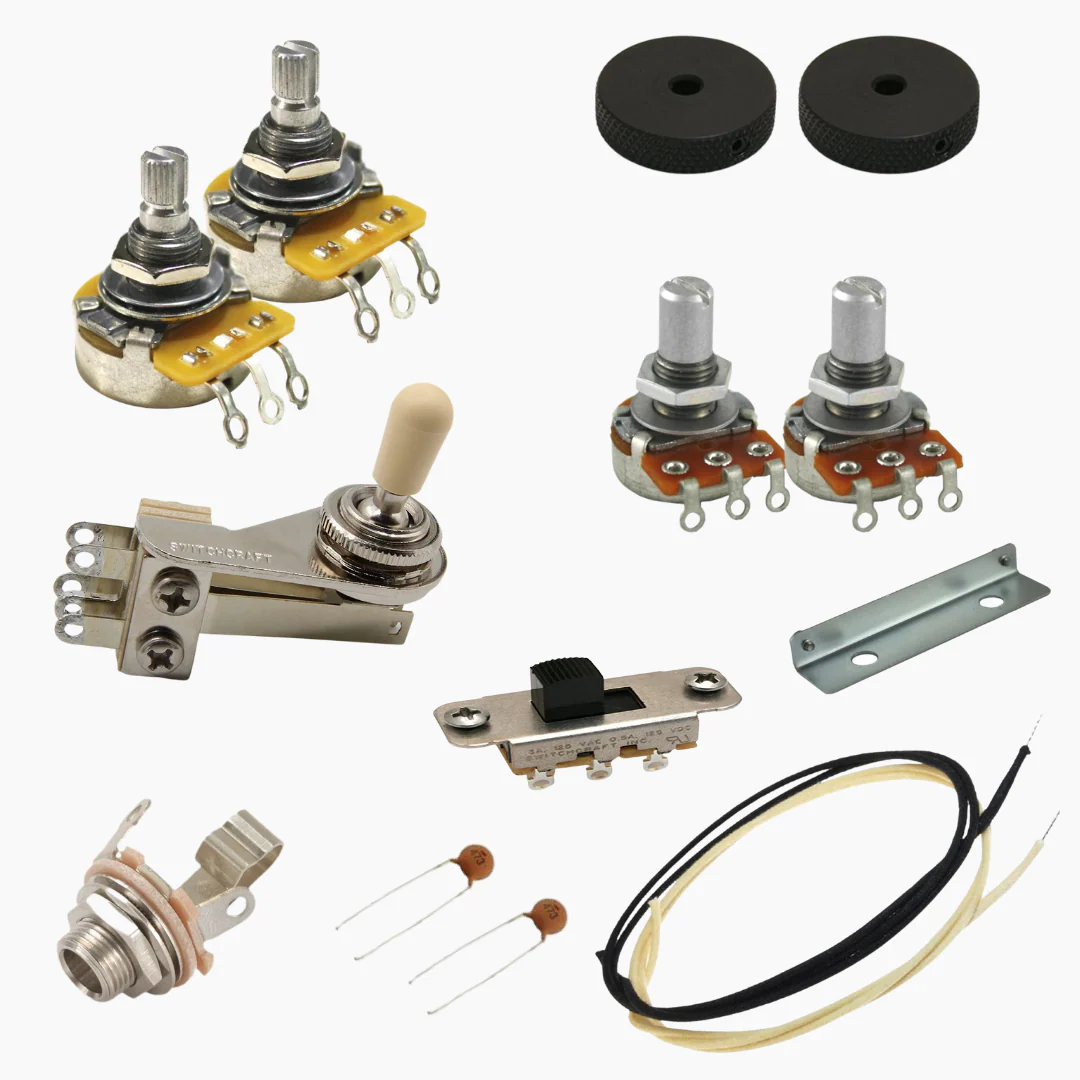

Wiring kit for Jazzmaster Ā® guitars. Contains the following Allparts parts:
3.5 feet of GW-0820-025 White cloth wire
3.5 feet of GW-0820-023 Black cloth wire
1x EP-0088-000 1-Meg split shaft linear pot
1x EP-4988-000 1-Meg CTS audio pot
1x EP-0055-000 Switchcraft input jack
1x EP-0059-000 .033 MFD capacitor
1x EP-0056-000 .020 MFD capacitor
1x EP-4365-000 Switchcraft right angle toggle switch
1x EP-4990-000 1-Meg solid shaft linear roller pot
1x EP-4992-000 50K Solid shaft linear roller pot
1x EP-0260-023 Switchcraft on-on black slide switch
1x AP-0652-000 Pot bracket
2x MK-3155-003 Black metal roller knobs

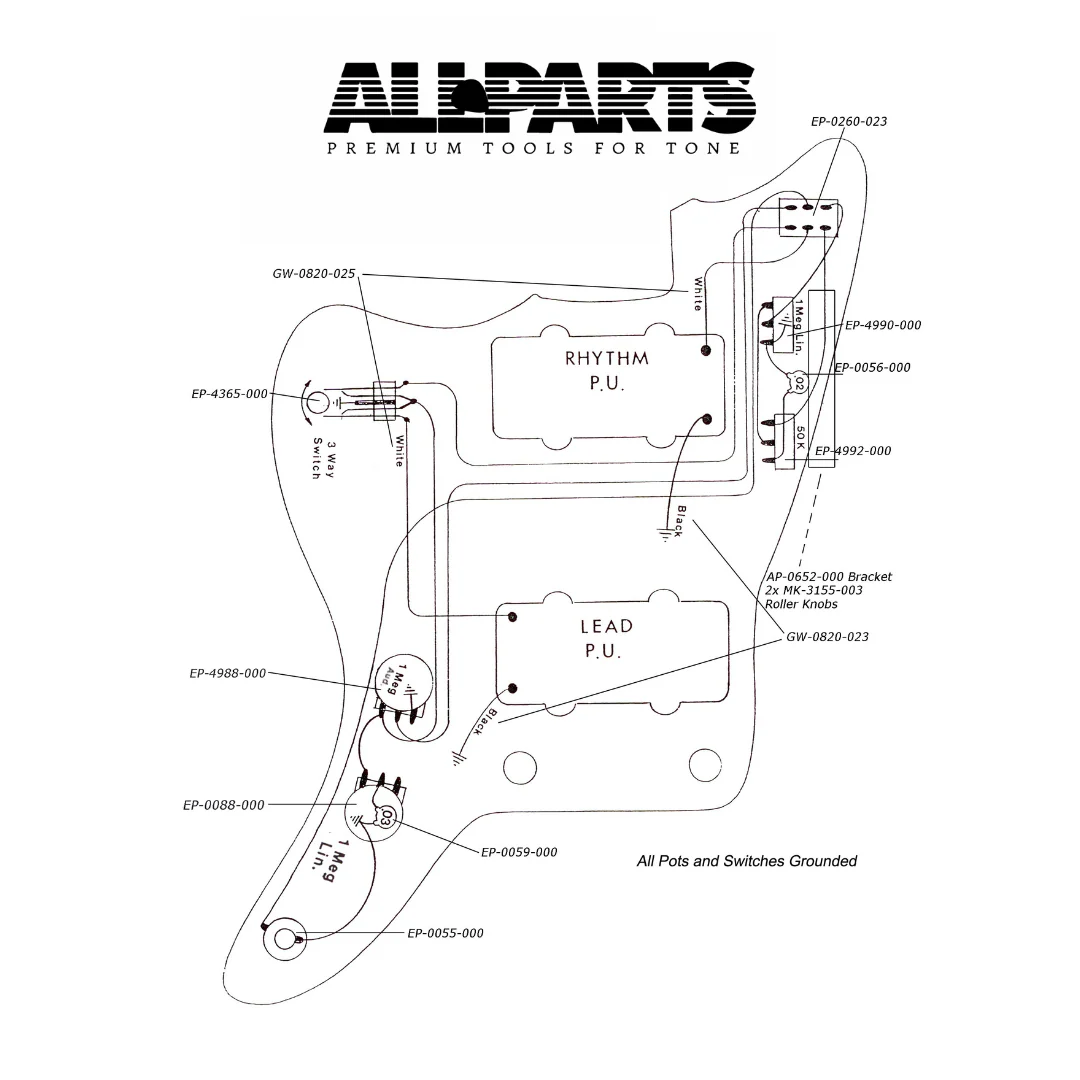

1x Wiring Diagram f
Note: Pickguard not included. Click here to find one.
